LED Back-Lit Flat Panels CCT tunable w/ Dip switch

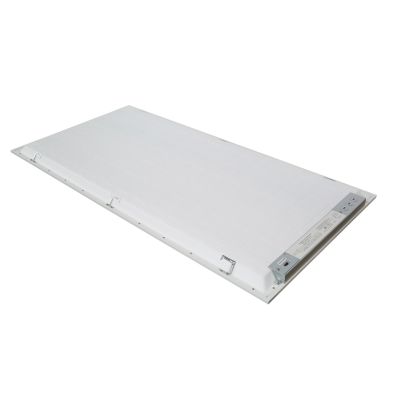

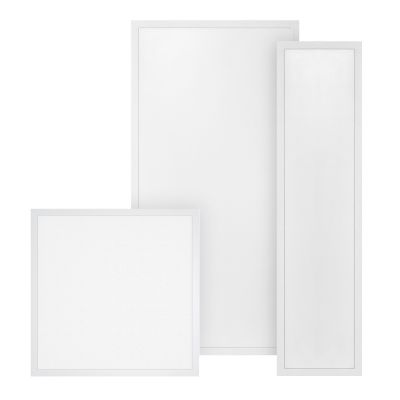

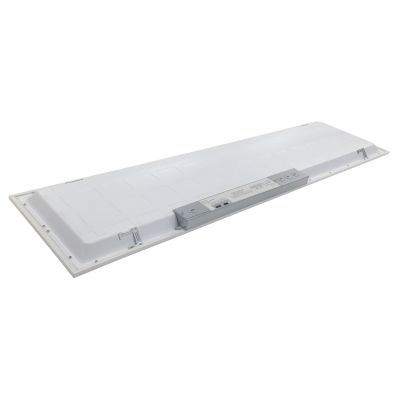

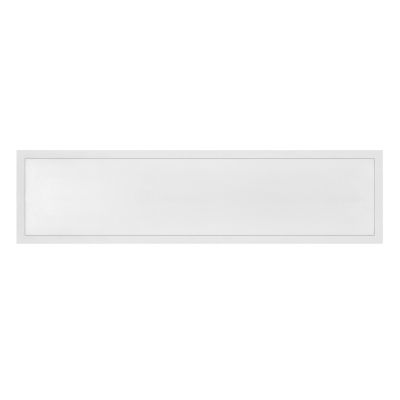

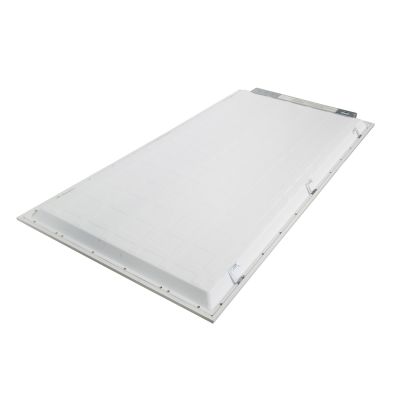

DESIGN & OPTIONS. These LED BACK-LIT DIP SWITCH PANELS are ideal for stock. On the back of each panel is a dip switch that can be used to change the CCT. The CCT options are 3500K, 4000K or 5000K. They come in a 1x4,2x2 or 2x4 size with a unique design, non-yellowing PC diffuser, anti-corrosion aluminum frame and 0-10V dimmable drivers at 120-277V with short circuit, circuit overload, and low-voltage protection.
INSTALLATION. These fixtures have convenient recessed mounting for drop in installation with standard grid ceilings. It can also be suspended via aircraft cable or wire (not included) to the attached clips. The clips can be folded over the “T” grid, locking the light to the grid. The low frame for surface mount installation is sold separately. Refer to install instructions for detailed steps.
APPLICATION. These fixtures are perfect for commercial, industrial and residential applications such as: offices, hospitals, schools, retail, and workshops and are also ideal for use in earthquake zones requiring seismic securing clips. They are Damp location rated and can operate in temperatures between 14+104°F (-10+40°C).
ENERGY SAVINGS & EFFICIENCY. This fixture provides a lumen output that is equal to or higher than traditional fluorescent architectural troffers and can cut your electric bill by up to 80% instantly. With a lifespan of 60,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
INSTALLATION. These fixtures have convenient recessed mounting for drop in installation with standard grid ceilings. It can also be suspended via aircraft cable or wire (not included) to the attached clips. The clips can be folded over the “T” grid, locking the light to the grid. The low frame for surface mount installation is sold separately. Refer to install instructions for detailed steps.
APPLICATION. These fixtures are perfect for commercial, industrial and residential applications such as: offices, hospitals, schools, retail, and workshops and are also ideal for use in earthquake zones requiring seismic securing clips. They are Damp location rated and can operate in temperatures between 14+104°F (-10+40°C).
ENERGY SAVINGS & EFFICIENCY. This fixture provides a lumen output that is equal to or higher than traditional fluorescent architectural troffers and can cut your electric bill by up to 80% instantly. With a lifespan of 60,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
